Webhooks

Configure webhooks to notify external services of application events

Introduction

You can configure webhooks to automate notifying external services of application events - such as a new build being uploaded, a build moved into a specific stream, or a release being published.

See the automations overview for more detail on events you can subscribe to.

Configure active webhooks

You can configure webhooks on a per-application basis. Go to your application Settings > Automations.

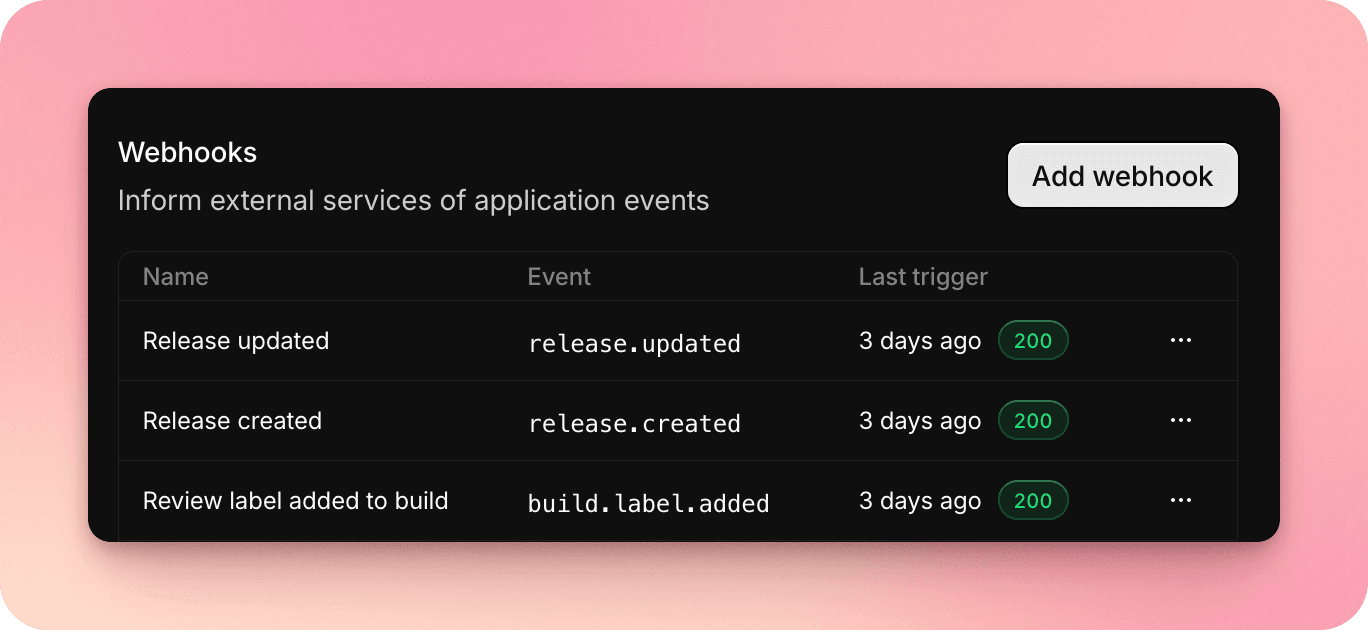

Webhooks

You can view existing webhooks in the table, or create a new one here. Up to 10 active webhooks per application can be configured.

Select the event you'd like to subscribe to, and the target URL to notify.

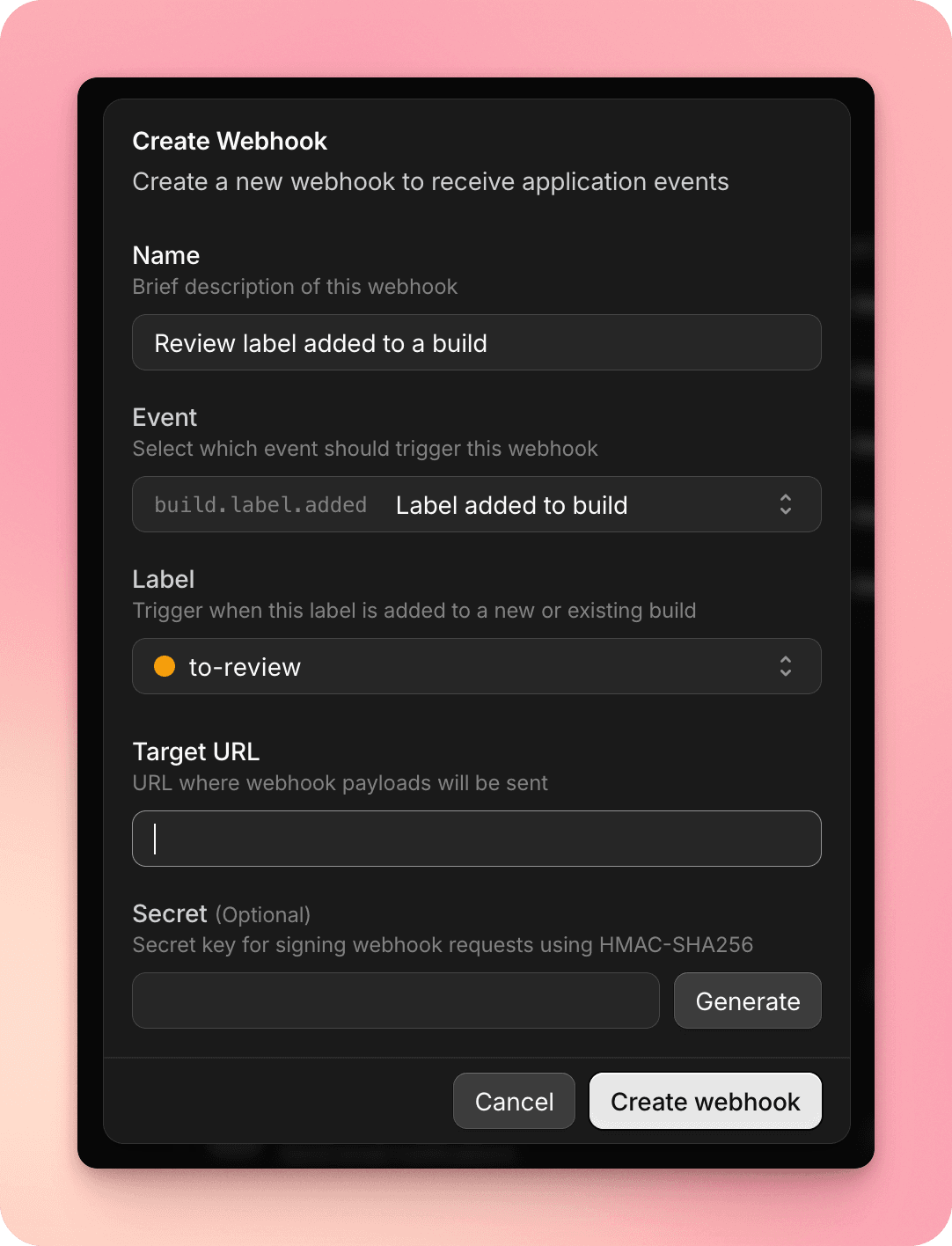

Create webhook

You can optionally provide or generate a secret. If you provide a secret, it will be used to sign the webhook payload using a HMAC SHA-256 signature. The signature will be provided in the 'x-webhook-signature' header.

Webhook format

Headers

Some useful headers will be provided with each request:

Header NameDescription
x-webhook-eventThe event type, i.e. release.created, build.created.stream, etc
x-webhook-idA unique id for this webhook request
x-webhook-timestampThe timestamp of the event
x-webhook-signatureHMAC SHA-256 signature of the payload, if a secret was provided

Example payloads

All webhook payloads follow a consistent structure with an id, event, created timestamp, and data object containing the event-specific information.

build.created

Triggered when a new build is uploaded.

{
  "id": "019a933c-f7eb-71ec-b065-0bd60a12219d",
  "event": "build.created",
  "created": 1763406837,
  "data": {
    "build": {
      "id": "mtvybu4",
      "build_structure": "file",
      "version": "1.0.0",
      "version_short": "1.0.0",
      "version_semantic_major": 1,
      "version_semantic_minor": 0,
      "version_semantic_patch": 0,
      "version_semantic_extra": "",
      "version_semantic_meta": "",
      "build_number": "2025.11.17.001",
      "platform": {
        "name": "iOS",
        "short_name": "iOS",
        "identifier": "ios"
      },
      "stream": {
        "id": "m7k3p9x",
        "name": "Internal Testing",
        "description": "Internal testing builds",
        "retention_days": null,
        "application_id": "a8k3m9p2n7x1",
        "workspace_id": "x9k2m7p3n5z2",
        "created_at": "2024-01-01T00:00:00.000000Z",
        "updated_at": "2024-01-01T00:00:00.000000Z"
      },
      "labels": [
        {
          "id": "p9k2m7x",
          "name": "to-review",
          "description": "Builds ready for review",
          "color": "#f59e0b",
          "level": "application",
          "application_id": "a8k3m9p2n7x1",
          "workspace_id": "x9k2m7p3n5z2",
          "created_at": "2025-11-08T23:05:53.000000Z",
          "updated_at": "2025-11-08T23:05:53.000000Z"
        }
      ],
      "architectures": [
        {
          "name": "ARM64v8",
          "identifier": "arm64v8",
          "description": "ARMv8-A 64-bit - Cortex-A34/35/53/57/72/73/55/65/75/76/77/78"
        },
        {
          "name": "ARMv9-A",
          "identifier": "armv9",
          "description": "ARMv9-A - Cortex-A510/710/715/320/520/720/725"
        }
      ],
      "notes": null,
      "size_total_bytes": 3553340,
      "size_total_string": "3.39 MB",
      "metadata_total_bytes": null,
      "primary_file": {
        "id": "013a935c-f7eb-g1ec-b065-0bd60a8372a5",
        "filename": "app.ipa",
        "size_bytes": 3553340,
        "size_string": "3.39 MB",
        "checksum_md5": "a1b2c3d4e5f6789012345678901234ab",
        "filetype": {
          "name": "iOS App Store Package",
          "extension": "ipa",
          "description": "iOS application archive",
          "mime_type": "application/octet-stream",
          "supports_expansion": false
        },
        "build_id": "mtvybu4",
        "application_id": "a8k3m9p2n7x1",
        "workspace_id": "x9k2m7p3n5z2",
        "created_at": "2025-11-17T19:10:53.000000Z",
        "updated_at": "2025-11-17T19:10:53.000000Z"
      },
      "expansion_files": [],
      "metadata_artifacts": [
        {
          "id": "013a935c-f7eb-g1ec-b065-0bd60a8372a7",
          "filename": "buildlog.txt",
          "size_bytes": 8192,
          "size_string": "8.00 KB",
          "checksum_md5": "c3d4e5f6a7b8901234567890123456cd",
          "metadata_filetype": {
            "name": "Plain Text",
            "extension": "txt",
            "description": "Plain text file",
            "mime_type": "text/plain"
          },
          "build_id": "mtvybu4",
          "application_id": "a8k3m9p2n7x1",
          "workspace_id": "x9k2m7p3n5z2",
          "created_at": "2025-11-17T19:10:53.000000Z",
          "updated_at": "2025-11-17T19:10:53.000000Z"
        }
      ],
      "ios_info": {
        "build_id": "mtvybu4",
        "bundle_id": "com.example.app",
        "bundle_name": "Example App",
        "key_type": "development",
        "minimum_os": "15.0",
        "bundle_version": "1",
        "version_short_string": "1.0.0",
        "provisioning_profile_uuid": "a1b2c3d4-e5f6-7890-abcd-ef1234567890",
        "provisioning_profile_expiry": "2026-12-31T23:59:59.000000Z",
        "team_name": "Example Team",
        "team_identifier": "ABC123DEF4"
      },
      "android_info": null,
      "build_source": "web-upload",
      "ci_pipeline": {
        "ci_pipeline_name": "Build iOS App",
        "ci_pipeline_url": "https://github.com/example/my-app/actions/workflows/build.yml",
        "ci_run_id": "1234567890",
        "ci_run_url": "https://github.com/example/my-app/actions/runs/1234567890",
        "ci_build_duration": "00:05:23"
      },
      "scm": {
        "scm_host_type": "git",
        "scm_host": "github.com",
        "scm_repo_name": "example/my-app",
        "scm_repo_url": "https://github.com/example/my-app",
        "scm_branch": "main",
        "scm_commit_sha": "abc123def456789012345678901234567890abcd",
        "scm_commit_sha_short": "abc123d",
        "scm_commit_url": "https://github.com/example/my-app/commit/abc123def456789012345678901234567890abcd"
      },
      "pending": false,
      "modal_url": "https://app.buildstash.com/app/a8k3m9p2n7x1/build/mtvybu4",
      "internal_download_url": "https://app.buildstash.com/download/build/mtvybu4",
      "application_id": "a8k3m9p2n7x1",
      "workspace_id": "x9k2m7p3n5z2",
      "built_at": null,
      "deleted_at": null,
      "created_at": "2025-11-17T19:10:53.000000Z",
      "updated_at": "2025-11-17T19:10:59.000000Z"
    }
  }
}

build.moved.stream

Triggered when a build is moved into a specific stream.

{
  "id": "019a933c-f7eb-71ec-b065-0bd60a12219e",
  "event": "build.moved.stream",
  "created": 1763406900,
  "data": {
    "build": {
      "id": "k8xw2p9",
      "build_structure": "file",
      "version": "1.0.0",
      "version_short": "1.0.0",
      "version_semantic_major": 1,
      "version_semantic_minor": 0,
      "version_semantic_patch": 0,
      "version_semantic_extra": "",
      "version_semantic_meta": "",
      "build_number": "456",
      "platform": {
        "name": "iOS",
        "short_name": "iOS",
        "identifier": "ios"
      },
      "stream": {
        "id": "n8k4p2x",
        "name": "Internal Testing",
        "description": "Internal testing builds",
        "retention_days": null,
        "application_id": "b7j4k8m3p9n2",
        "workspace_id": "y8j3k6m4p2n7",
        "created_at": "2024-01-01T00:00:00.000000Z",
        "updated_at": "2024-01-01T00:00:00.000000Z"
      },
      "labels": [],
      "architectures": [
        {
          "name": "ARM64v8",
          "identifier": "arm64v8",
          "description": "ARMv8-A 64-bit - Cortex-A34/35/53/57/72/73/55/65/75/76/77/78"
        },
        {
          "name": "ARMv9-A",
          "identifier": "armv9",
          "description": "ARMv9-A - Cortex-A510/710/715/320/520/720/725"
        }
      ],
      "notes": null,
      "size_total_bytes": 52428800,
      "size_total_string": "50 MB",
      "metadata_total_bytes": null,
      "primary_file": {
        "id": "013a935c-f7eb-g1ec-b065-0bd60a8372a6",
        "filename": "app.ipa",
        "size_bytes": 52428800,
        "size_string": "50 MB",
        "checksum_md5": "b2c3d4e5f6a7890123456789012345bc",
        "filetype": {
          "name": "iOS App Store Package",
          "extension": "ipa",
          "description": "iOS application archive",
          "mime_type": "application/octet-stream",
          "supports_expansion": false
        },
        "build_id": "k8xw2p9",
        "application_id": "b7j4k8m3p9n2",
        "workspace_id": "y8j3k6m4p2n7",
        "created_at": "2025-11-17T19:10:53.000000Z",
        "updated_at": "2025-11-17T19:10:53.000000Z"
      },
      "expansion_files": [],
      "metadata_artifacts": [],
      "ios_info": {
        "build_id": "k8xw2p9",
        "bundle_id": "com.example.app",
        "bundle_name": "Example App",
        "key_type": "distribution",
        "minimum_os": "15.0",
        "bundle_version": "1",
        "version_short_string": "1.0.0",
        "provisioning_profile_uuid": "b2c3d4e5-f6a7-8901-bcde-f12345678901",
        "provisioning_profile_expiry": "2026-12-31T23:59:59.000000Z",
        "team_name": "Example Team",
        "team_identifier": "XYZ789GHI0"
      },
      "android_info": null,
      "build_source": "web-upload",
      "ci_pipeline": {
        "ci_pipeline_name": "Build iOS App",
        "ci_pipeline_url": "https://github.com/example/my-app/actions/workflows/build.yml",
        "ci_run_id": "2345678901",
        "ci_run_url": "https://github.com/example/my-app/actions/runs/2345678901",
        "ci_build_duration": "00:06:15"
      },
      "scm": {
        "scm_host_type": "git",
        "scm_host": "github.com",
        "scm_repo_name": "example/my-app",
        "scm_repo_url": "https://github.com/example/my-app",
        "scm_branch": "develop",
        "scm_commit_sha": "def456abc789012345678901234567890abcdef12",
        "scm_commit_sha_short": "def456a",
        "scm_commit_url": "https://github.com/example/my-app/commit/def456abc789012345678901234567890abcdef12"
      },
      "pending": false,
      "modal_url": "https://app.buildstash.com/app/b7j4k8m3p9n2/build/k8xw2p9",
      "internal_download_url": "https://app.buildstash.com/download/build/k8xw2p9",
      "application_id": "b7j4k8m3p9n2",
      "workspace_id": "y8j3k6m4p2n7",
      "built_at": null,
      "deleted_at": null,
      "created_at": "2025-11-17T19:10:53.000000Z",
      "updated_at": "2025-11-17T19:10:59.000000Z"
    },
    "stream": {
      "id": "n8k4p2x",
      "name": "Internal Testing",
      "description": "Internal testing builds",
      "retention_days": null,
      "application_id": "b7j4k8m3p9n2",
      "workspace_id": "y8j3k6m4p2n7",
      "created_at": "2024-01-01T00:00:00.000000Z",
      "updated_at": "2024-01-01T00:00:00.000000Z"
    }
  }
}

release.updated

Triggered when a release is updated, with builds added or removed.

{
  "id": "019aa2b6-c835-7180-9b5b-d87082719c8e",
  "event": "release.updated",
  "created": 1763666479,
  "data": {
    "release": {
      "id": "w9k3m2p",
      "version": "0.0.1",
      "version_short": "0.0.1",
      "version_semantic_major": 0,
      "version_semantic_minor": 0,
      "version_semantic_patch": 1,
      "version_semantic_extra": "",
      "version_semantic_meta": "",
      "title": "Name here",
      "labels": [
        {
          "id": "t8p9k2m",
          "name": "to-publisher",
          "description": "Release ready to be published",
          "color": "#10b981",
          "level": "release",
          "application_id": "d8k4m7p3n9x2",
          "workspace_id": "w7j5k3m8p2n6",
          "created_at": "2025-11-08T23:05:53.000000Z",
          "updated_at": "2025-11-08T23:05:53.000000Z"
        }
      ],
      "notes": "# Release Notes - Version 0.0.1\n\n**Release Date:** November 15, 2025\n\n## New Features\n\n- Advanced search functionality with intelligent filtering\n- Dark mode support\n- Real-time collaboration tools\n\n## Improvements\n\n- Reduced page load times by 40%\n- Improved mobile experience\n- Enhanced accessibility features\n\n## Bug Fixes\n\n- Fixed notification clearing issues\n- Resolved file upload crashes\n- Corrected timezone display inconsistencies",
      "builds": [
        {
          "id": "n5mh7q3",
          "build_structure": "file",
          "version": "0.0.1",
          "version_short": "0.0.1",
          "version_semantic_major": 0,
          "version_semantic_minor": 0,
          "version_semantic_patch": 1,
          "version_semantic_extra": "alpha",
          "version_semantic_meta": "2025.01.01",
          "build_number": "32345",
          "platform": {
            "name": "Windows",
            "short_name": "Windows",
            "identifier": "windows"
          },
          "stream": {
            "id": "k2p9m4x",
            "name": "nightlies",
            "description": "Nightly builds.",
            "retention_days": null,
            "application_id": "d8k4m7p3n9x2",
            "workspace_id": "w7j5k3m8p2n6",
            "created_at": "2025-01-12T13:57:10.000000Z",
            "updated_at": "2025-01-12T13:57:10.000000Z"
          },
          "labels": [
            {
              "id": "r4t8m2p",
              "name": "to-review",
              "description": null,
              "color": "#f59e0b",
              "level": "application",
              "application_id": "d8k4m7p3n9x2",
              "workspace_id": "w7j5k3m8p2n6",
              "created_at": "2025-11-08T23:05:53.000000Z",
              "updated_at": "2025-11-08T23:05:53.000000Z"
            }
          ],
          "notes": null,
          "size_total_bytes": 400,
          "size_total_string": "400.00 B",
          "metadata_total_bytes": 0,
          "build_source": "web-upload",
          "ci_pipeline": {
            "ci_pipeline_name": "Build Windows App",
            "ci_pipeline_url": "https://github.com/example/my-app/actions/workflows/build.yml",
            "ci_run_id": "3456789012",
            "ci_run_url": "https://github.com/example/my-app/actions/runs/3456789012",
            "ci_build_duration": "00:04:15"
          },
          "scm": {
            "scm_host_type": "git",
            "scm_host": "github.com",
            "scm_repo_name": "example/my-app",
            "scm_repo_url": "https://github.com/example/my-app",
            "scm_branch": "main",
            "scm_commit_sha": "def456abc789012345678901234567890abcdef12",
            "scm_commit_sha_short": "def456a",
            "scm_commit_url": "https://github.com/example/my-app/commit/def456abc789012345678901234567890abcdef12"
          },
          "pending": false,
          "modal_url": "https://app.buildstash.com/app/d8k4m7p3n9x2/build/n5mh7q3",
          "internal_download_url": "https://app.buildstash.com/download/build/n5mh7q3",
          "application_id": "d8k4m7p3n9x2",
          "workspace_id": "w7j5k3m8p2n6",
          "built_at": null,
          "deleted_at": null,
          "created_at": "2025-11-17T03:33:54.000000Z",
          "updated_at": "2025-11-17T04:01:00.000000Z"
        },
        {
          "id": "s8v2d5y",
          "build_structure": "file",
          "version": "2.5.1-stable+2024.12.17",
          "version_short": "2.5.1",
          "version_semantic_major": 2,
          "version_semantic_minor": 5,
          "version_semantic_patch": 1,
          "version_semantic_extra": "stable",
          "version_semantic_meta": "2024.12.17",
          "build_number": "62-release",
          "platform": {
            "name": "Android",
            "short_name": "Android",
            "identifier": "android"
          },
          "stream": {
            "id": "k2p9m4x",
            "name": "nightlies",
            "description": "Nightly builds.",
            "retention_days": null,
            "application_id": "d8k4m7p3n9x2",
            "workspace_id": "w7j5k3m8p2n6",
            "created_at": "2025-01-12T13:57:10.000000Z",
            "updated_at": "2025-01-12T13:57:10.000000Z"
          },
          "labels": [
            {
              "id": "q9f4j2r",
              "name": "production",
              "description": null,
              "color": "#a855f7",
              "level": "application",
              "application_id": "d8k4m7p3n9x2",
              "workspace_id": "w7j5k3m8p2n6",
              "created_at": "2025-11-08T23:41:01.000000Z",
              "updated_at": "2025-11-08T23:41:01.000000Z"
            },
            {
              "id": "d5y8f2v",
              "name": "release",
              "description": null,
              "color": "#ec4899",
              "level": "application",
              "application_id": "d8k4m7p3n9x2",
              "workspace_id": "w7j5k3m8p2n6",
              "created_at": "2025-11-08T23:41:01.000000Z",
              "updated_at": "2025-11-08T23:41:01.000000Z"
            }
          ],
          "notes": null,
          "size_total_bytes": 12688611,
          "size_total_string": "12.10 MB",
          "metadata_total_bytes": 0,
          "build_source": "jenkins",
          "ci_pipeline": {
            "ci_pipeline_name": "Test pipeline",
            "ci_pipeline_url": "http://localhost:8080/job/Test%20pipeline/",
            "ci_run_id": "62",
            "ci_run_url": "http://localhost:8080/job/Test%20pipeline/62/",
            "ci_build_duration": "00:00:10"
          },
          "scm": {
            "scm_host_type": "git",
            "scm_host": "github.com",
            "scm_repo_name": "example/my-app",
            "scm_repo_url": "https://github.com/example/my-app",
            "scm_branch": "develop",
            "scm_commit_sha": "ghi789jkl0123456789012345678901234567890ab",
            "scm_commit_sha_short": "ghi789j",
            "scm_commit_url": "https://github.com/example/my-app/commit/ghi789jkl0123456789012345678901234567890ab"
          },
          "pending": false,
          "modal_url": "https://app.buildstash.com/app/d8k4m7p3n9x2/build/s8v2d5y",
          "internal_download_url": "https://app.buildstash.com/download/build/s8v2d5y",
          "application_id": "d8k4m7p3n9x2",
          "workspace_id": "w7j5k3m8p2n6",
          "built_at": "2025-11-10T20:27:28.000000Z",
          "deleted_at": null,
          "created_at": "2025-11-10T20:27:28.000000Z",
          "updated_at": "2025-11-16T16:49:37.000000Z"
        }
      ],
      "application_id": "d8k4m7p3n9x2",
      "workspace_id": "w7j5k3m8p2n6",
      "created_at": "2025-11-17T16:17:01.000000Z",
      "updated_at": "2025-11-17T16:20:51.000000Z"
    }
  }
}

More on data structures

You can find further detail on data structures returned with webhook payloads in the API reference documentation.

Overview

Trigger actions on application events

Notifications

Configure automated notifications for application events

On this page

Introduction
Configure active webhooks
Webhook format
Headers
Example payloads
build.created
build.moved.stream
release.updated
More on data structures
